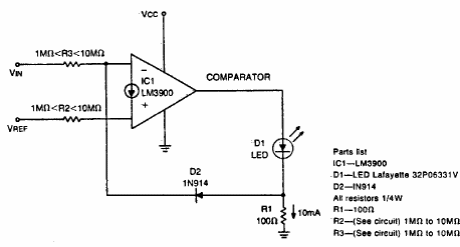

Comparator with Feedback diode (CB5072E)

Details: Written by: Newton C. Braga

We find this circuit in the 80's own component manual. The power supply should be from 4 to 30 V and the LM3900 consists of a transconductance operational amplifier.
