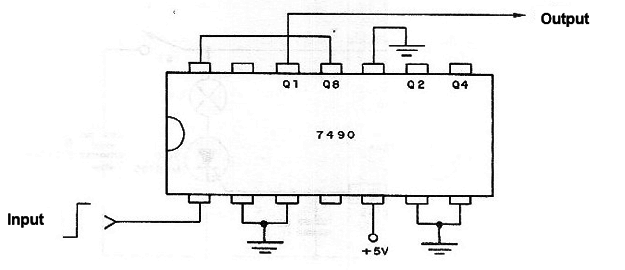

TTL square signals can be divided by 10 using this circuit. The maximum frequency depends on the 7490 family. Power supply voltage is 5 V and other blocks can be added to divisions by 100, 1,000 etc.
Frequency Divide-by-10 TTL - Circuit Using the 7490 (CB253E)
- Details
- Written by: Newton C. Braga
