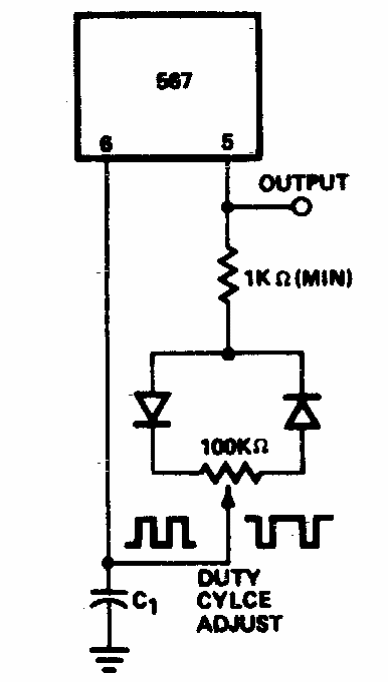

In the figure we have the way to implement an adjustable active cycle oscillator using PLL 567. The frequency depends on C1 and the diodes are commonly used. The power supply is 9 or 10 V.
