Fast Current Sensor with Alarm (CB5255E)

Details
Written by: Newton C. Braga

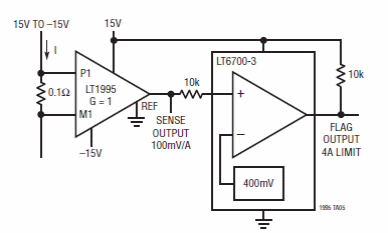

    This circuit produces a warning signal with the programmed current that can reach 4 A. The circuit is from a 2005 Linear Technology application manual. The circuit power is 15 V.
