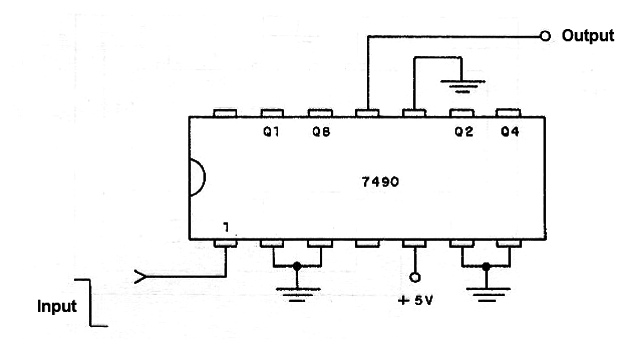

The frequency of TTL square signal is divide by 5 with this circuit. Power supply is 5 V and the maximum frequency for standard TTL is 10 MHz. More blocks can be added to perform divisions by 25, 125, etc.
The frequency of TTL square signal is divide by 5 with this circuit. Power supply is 5 V and the maximum frequency for standard TTL is 10 MHz. More blocks can be added to perform divisions by 25, 125, etc.
