DC Regulated DC Converter (CB6099E)

Details
Written by: Newton C. Braga

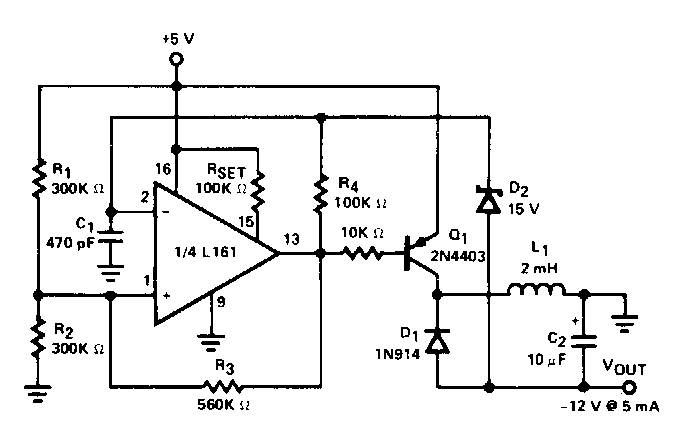

     This circuit was found in Siliconix documentation from the 1980s. Equivalent operational amplifiers can be used and the output current is very low.




| Clique na imagem para ampliar |
