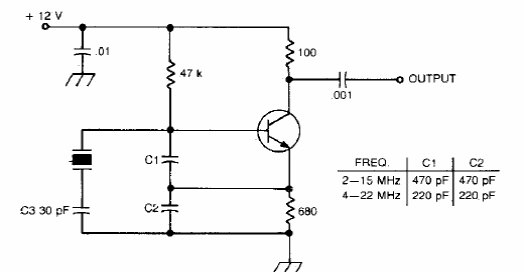

This circuit can generate signals from 2 to 15 MHz or 4 to 22 MHz depending on the used components given in the table next to the diagram. The transistor can be a 2N2222 and the capacitors must be ceramic.
