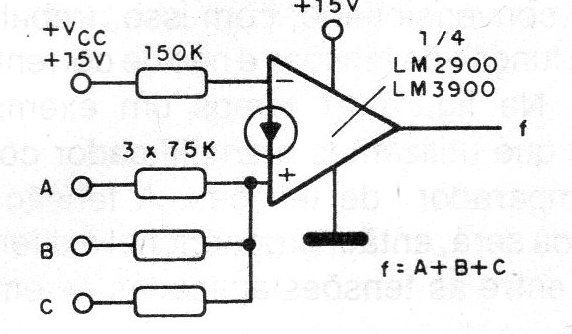

By polarizing the reference with the supply voltage we can use these amplifiers in logic circuits. The circuit of the figure is an example of this. In this case we have a supply and reference voltage of 15 V and the source is simple.
