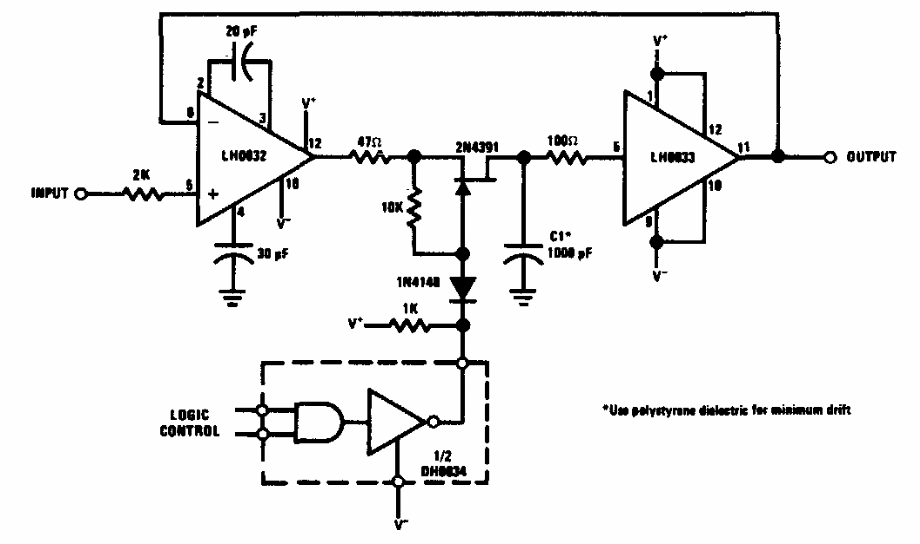

High Speed Sample and Hold (CB5956E)

Details
Written by: Newton C. Braga



     This circuit is from an American publication of the 80's. It makes use of components of the time. However, the circuit is the basis for a modern shield application since the input is TTL.
