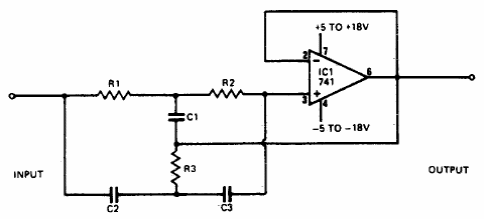

Rejector Filter 741 (CB5195E)

Details: Written by: Newton C. Braga

This operational filter configuration was obtained in a 1980s publication. The calculation is made by the traditional formula and the power supply must be symmetrical.
