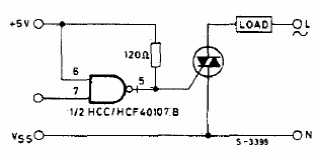

This shield circuit was found in an American publication from the 80's. The triac is of low trigger current type. AC power has a common point with low voltage.
