Thermostat (CB6008E)

Details
Written by: Newton C. Braga

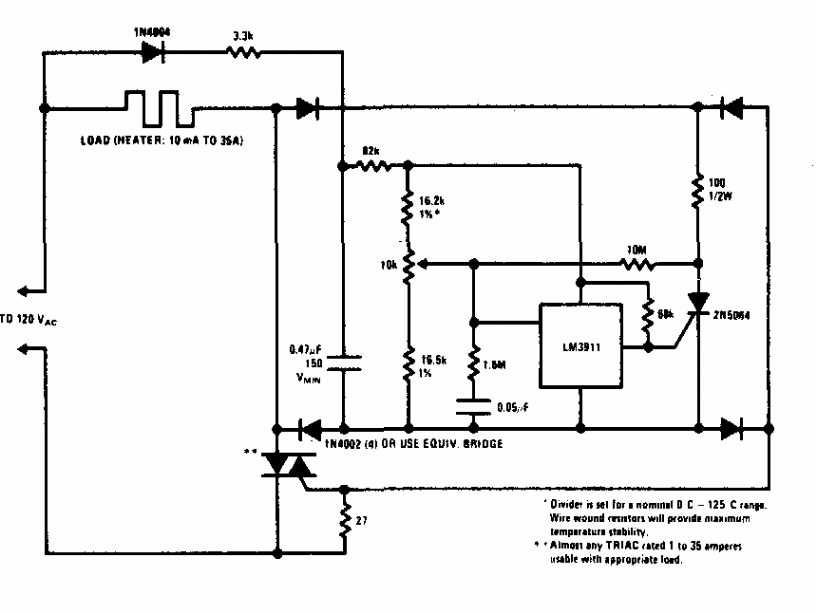

     This circuit controls a heating element using a triac. Triac must be fitted with a heat sink. We find it in an American documentation from the 80s.
