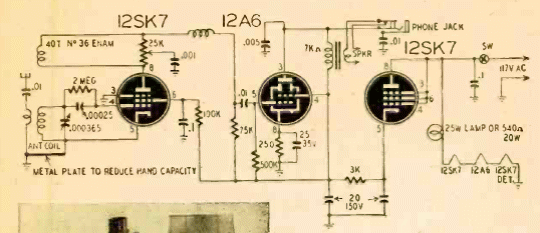

This shortwave receiver was found on a Radio Craft in October 1947. Using 3 tubes it is a regenerative type and has a loudspeaker output. Power comes from the power grid itself with a pentode valve configured to function as a rectifier.
Simple Receiver (T1183E)
- Details
- Written by: Newton C. Braga
