The frequency of this flashing with neon lamp depends on the incidence of light in an LDR.
As it is a project connected to the power grid, maximum care must be taken with its assembly, as there is danger of shocks.
The circuit uses few components and the capacitor used must have a working voltage of at least 100 V.
The frequency depends on this capacitor, which can be changed and polyester types are recommended.

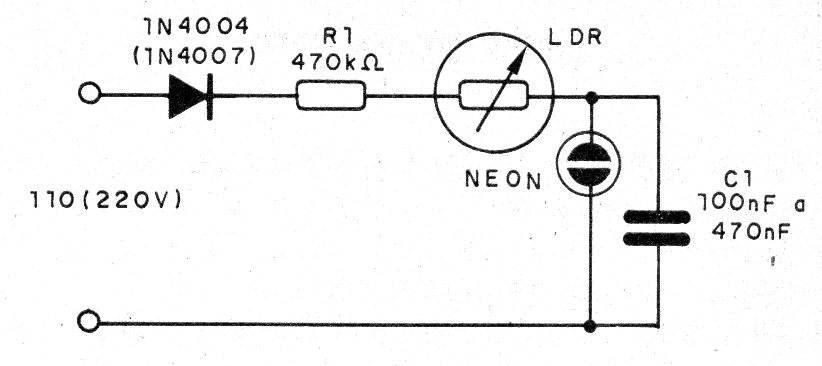

In figure 1 we have the complete diagram of the blinker.

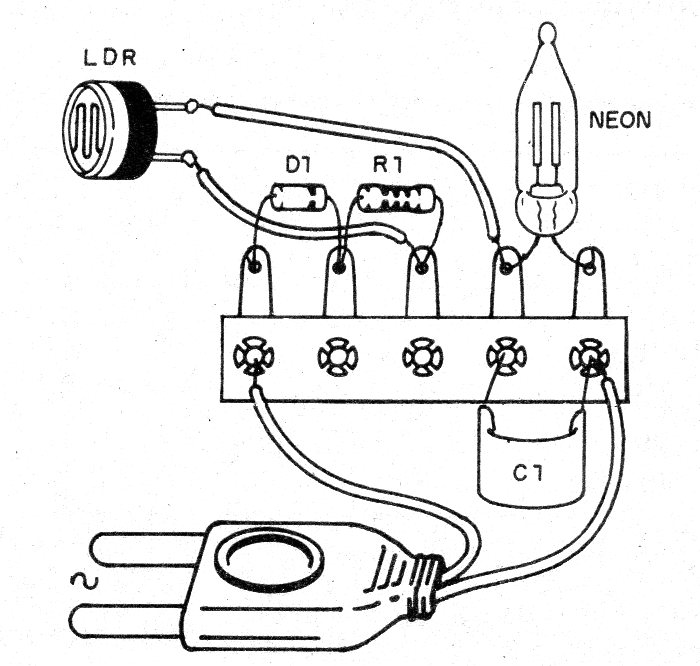

In figure 2 we have the aspect of the assembly on a terminal strip.
The LDR is common round and the neon lamp can be of any type.
Material list
LDR - round common LDR
NE-1 - common neon lamp
D1 - 1N4004 for the 110 V network and 1N4007 for the 220 V network - diode
R1 - 470 k ohms x 1/8 W - resistor - yellow, violet, yellow
C1 - 100 nF to 470 nF - polyester capacitor
Several:
Terminal strip, power cable, wires, solder, etc.
