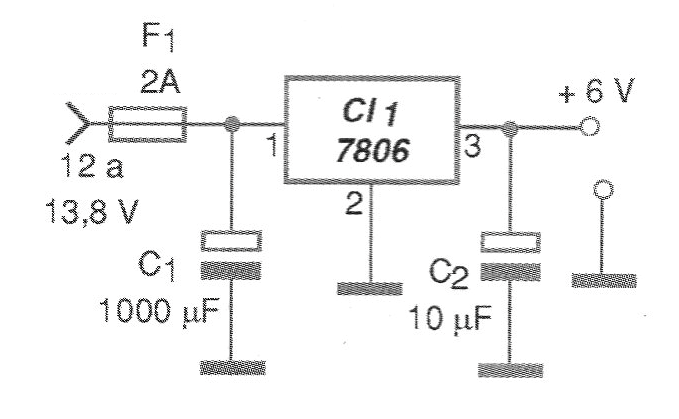

The purpose of the circuit of figure 1 is simply to obtain a voltage of 6 V for powering portable equipment from the automotive battery. The maximum current is 1 A and connection plugs with correct polarity should be used.
The capacitor C1 must have a working voltage of at least 16 V and the integrated circuit must be mounted on a heatsink.
| Clique na imagem para ampliar |

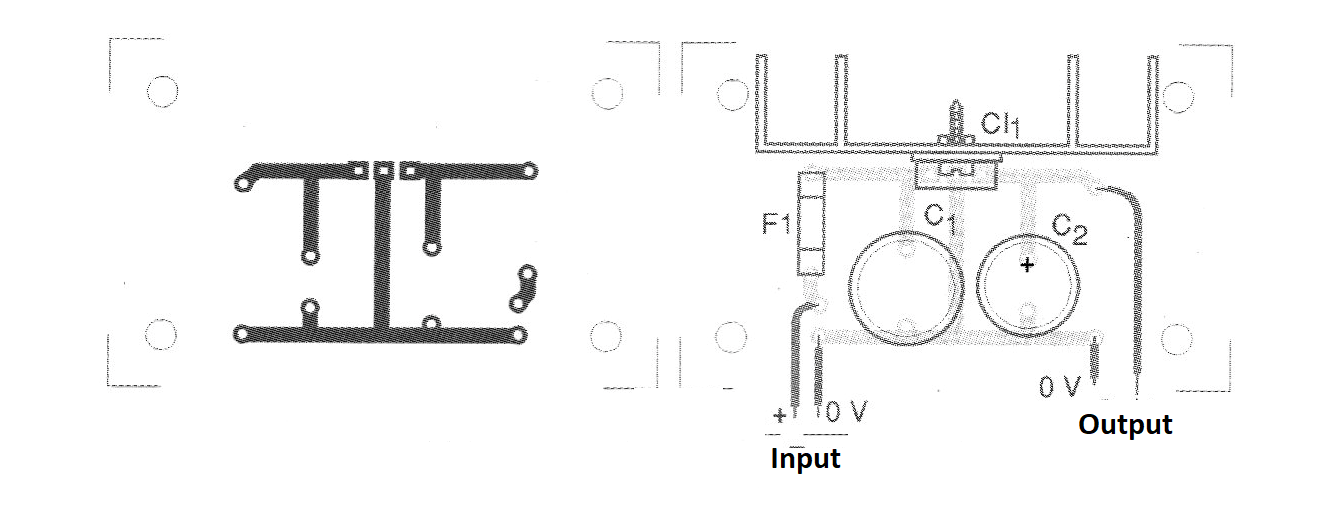

In figure 2 we have the printed circuit board for the assembly of the gear unit. We recommend that it be enclosed in a plastic box.
| Clique na imagem para ampliar |
Material list
CI-1 - 7806 - integrated circuit
C1 - 1000 uF x 16 V - electrolytic capacitor
C2 - 10 uF x 12 V - electrolytic capacitor
F1 - 2 A - fuse
Several:
Printed circuit board, wires, solder, heat radiator for the integrated circuit, etc.
