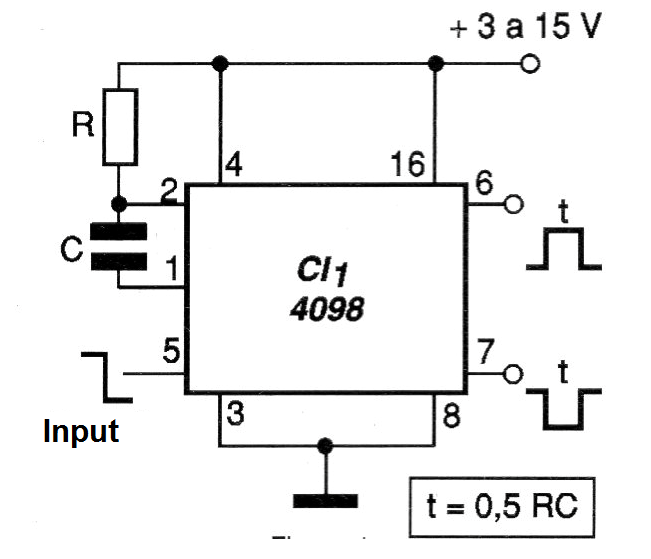

The circuit of Figure 1 uses a 4098 CMOS in the monostable configuration providing both normal output and complementary output.
The time the output remains in the active state depends on R and C, according to the formula next to the diagram.
The power supply can be made with voltages between 3 and 15 V and the consumption without load is very low, on the order of 0.5 mA with 10 V supply. The input is activated when taken for an instant to the low level.
The resistor may have values in the range of 1 k to 1 M ohms while the capacitor may have values in the range of 100 pF to 1000 uF.

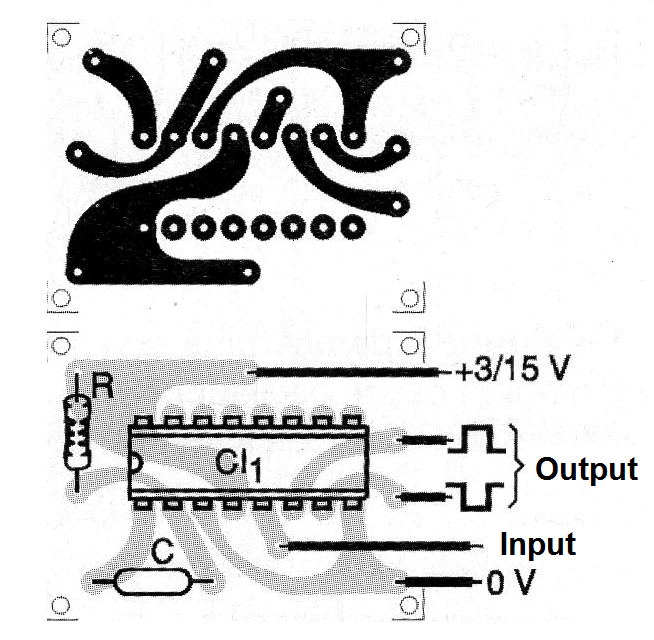

In figure 2 we have a suggestion of printed circuit board that uses only one of the monostable available in the configuration.
The other half of the integrated circuit can be used in equivalent configuration.
Material list
CI-1 - 4098 - integrated circuit CMOS
R - resistor - see text
C - capacitor - see text
Miscellaneous: printed circuit board, wires, solder, etc.
