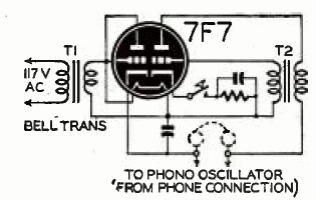

With high impedance headphone listening this circuit uses a 7V tube filament. The circuit is from a 1946 publication. Frequency is given by transformer T2 The resistor without value is typically 220 to 470 k and the capacitor 10 nF.
Code Practice Oscillator (T1050E)
- Details
- Written by: Newton C. Braga
