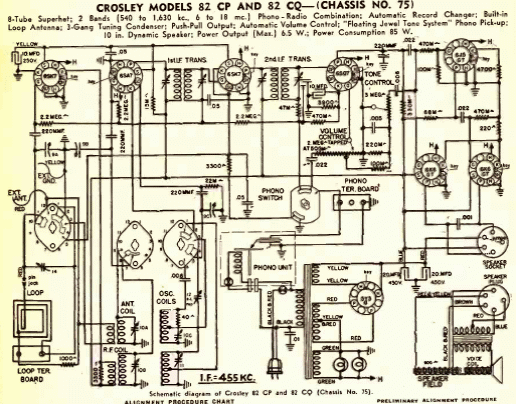

We found this diagram of an 8-tube receiver in a documentation from 1941. Note the different way of representing the tubes, a way that was not very well accentuated and soon ceased to be used. The dual waveband receiver used a loop antenna and had a pluggable speaker output. It was on a large living room piece of furniture with a mono input for a record player.
