Fast Heating 15W Amplifier (T487E)

Details
Written by: Newton C. Braga

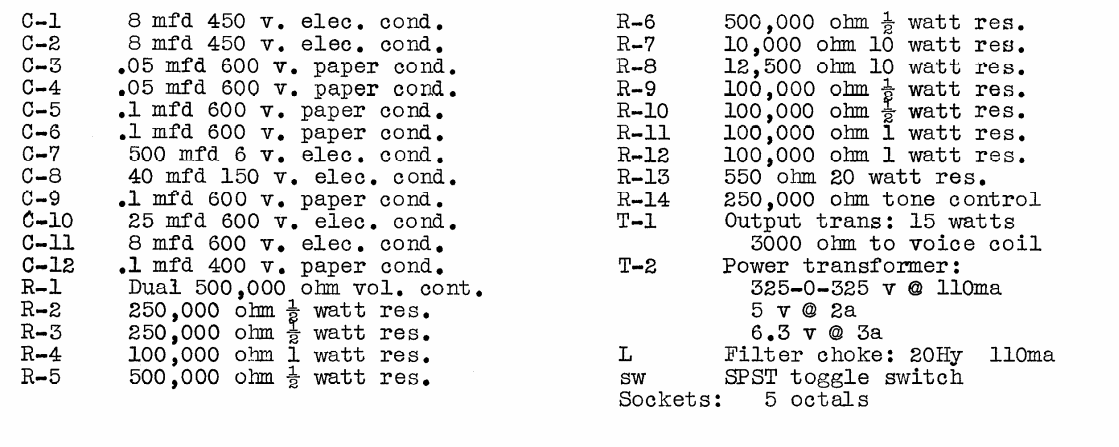

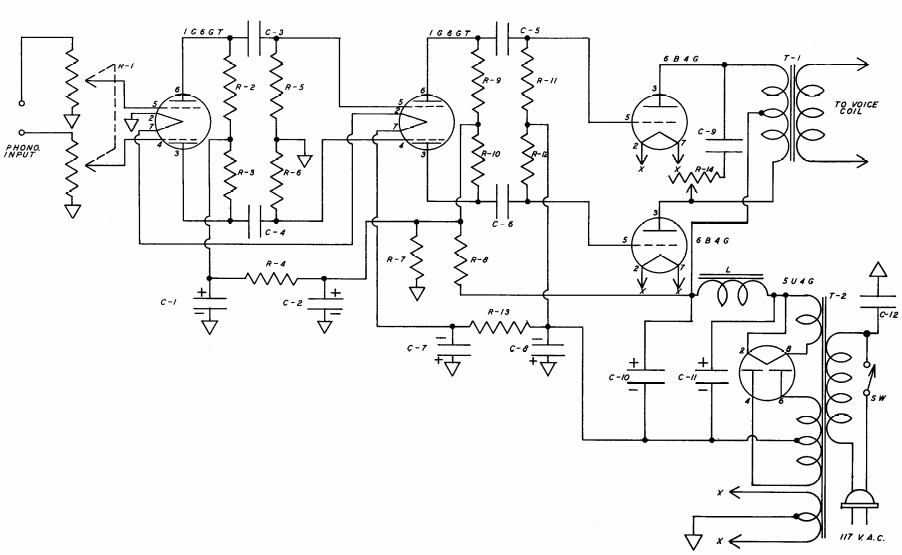

We found this circuit in an American documentation from 1947. The circuit uses 5 tubes and has a feature to keep the tube filaments preheated.
