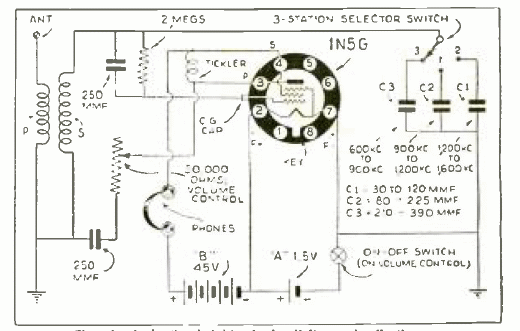

This interesting pocket circuit of just one valve with earphone listening was found in a Radio Craft from December 1939. The circuit is powered by two batteries, the +B battery having 45 V. The coils are for the medium wave band. The circuit is of the regenerative type and it has a selector switch that selects one of 3 stations programmed through trimmers. The headphone must be high impedance magnetic.
