1943 Amplifier (T715E)

Details
Written by: Newton C. Braga

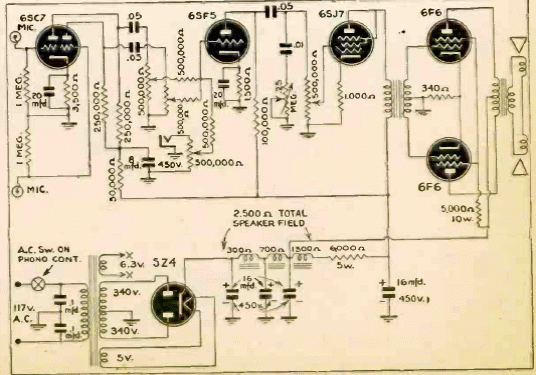

The figure shows a diagram of a typical 1943 amplifier with push-pull output tubes. The circuit has a power of a few tens of watts and is powered by the power grid. Note filtering with multiple capacitors for lowest possible noise level.
