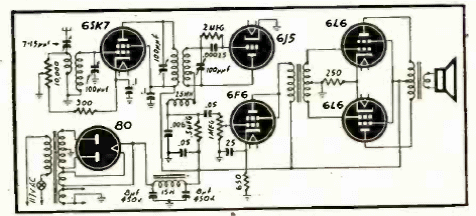

Found in a 1945 publication, this circuit is mains powered. The circuit has a push-pull output with good power and the tuning depends on the coils used.
6-tube super regenerative receiver (T978E)
- Details
- Written by: Newton C. Braga
Found in a 1945 publication, this circuit is mains powered. The circuit has a push-pull output with good power and the tuning depends on the coils used.
