6W HiFi Amplifier (T480E)

Details
Written by: Newton C. Braga

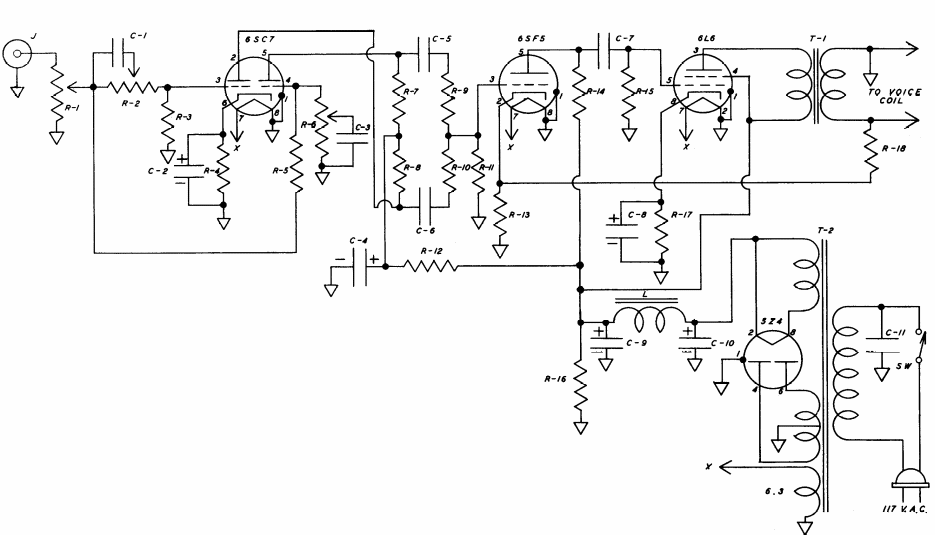

This 4-tube amplifier with 6W of output was found in an American manual from 1947. The sound quality is excellent.
