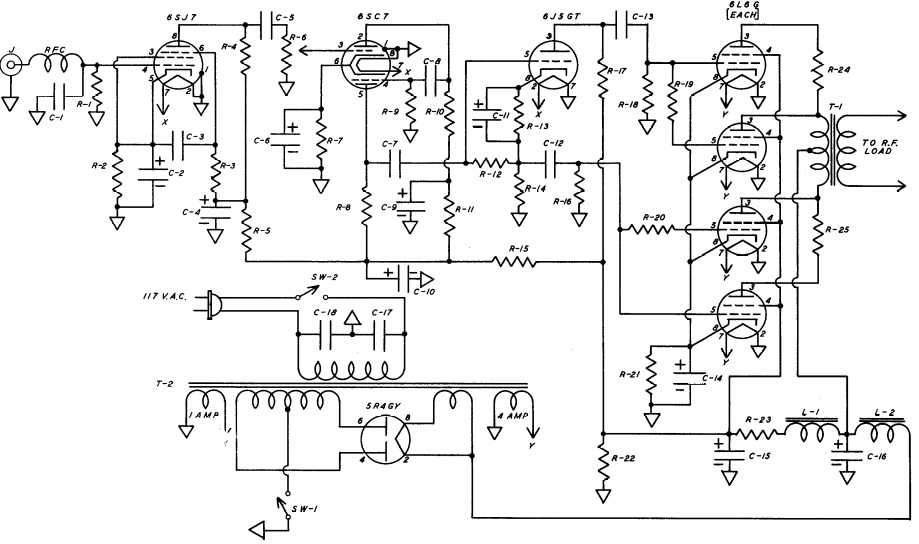

This modulator amplifier for transmitters was found in a 1947 American book. The circuit uses an output with 4 tubes connected in parallel and in push-pull.
| Clique na imagem para ampliar |
| Clique na imagem para ampliar |
50 W Modulator Amplifier (T501E)
- Details
- Written by: Newton C. Braga
