4-tube reflex receiver (T1569E)

Details
Written by: Newton C. Braga

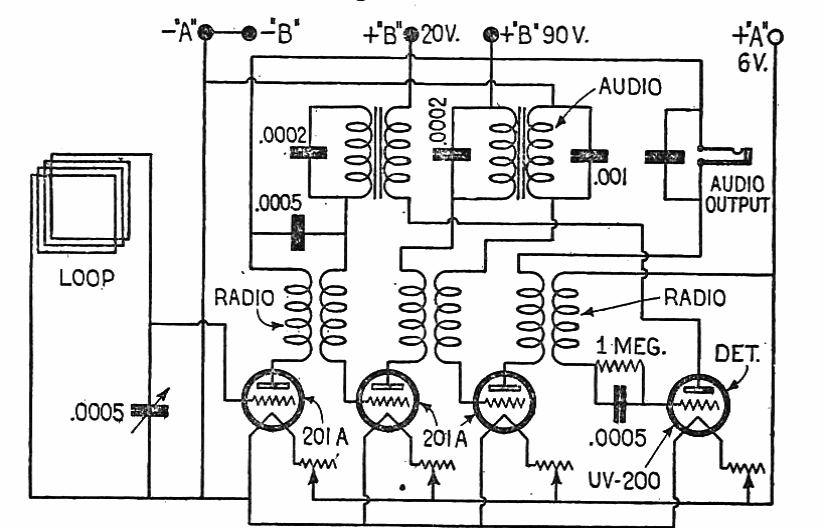

Found in a 1924 Gernsback publication this circuit uses 4 batteries for power and loop antenna. Listening is over a high-impedance type earphone or loudspeaker common at the time.
