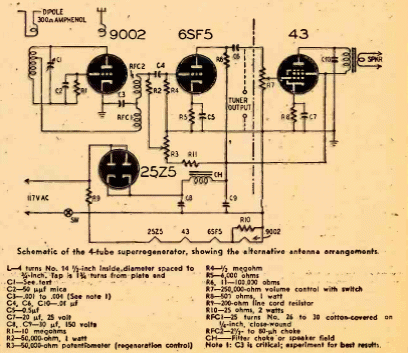

This circuit was found in the Radio Craft magazine of December 1947. Using 4 tubes it is an AC DC type with a transformerless source. The output consists of an audio signal that drives a power amplifier.
Super R FM Receiver (T1199E)
- Details
- Written by: Newton C. Braga
