12W Phonographic Amplifier and Compressor (T499E)

Details
Written by: Newton C. Braga



This 8-tube amplifier with 12 W output was found in an American publication from 1947. The output is in counterphase with pentode tubes.














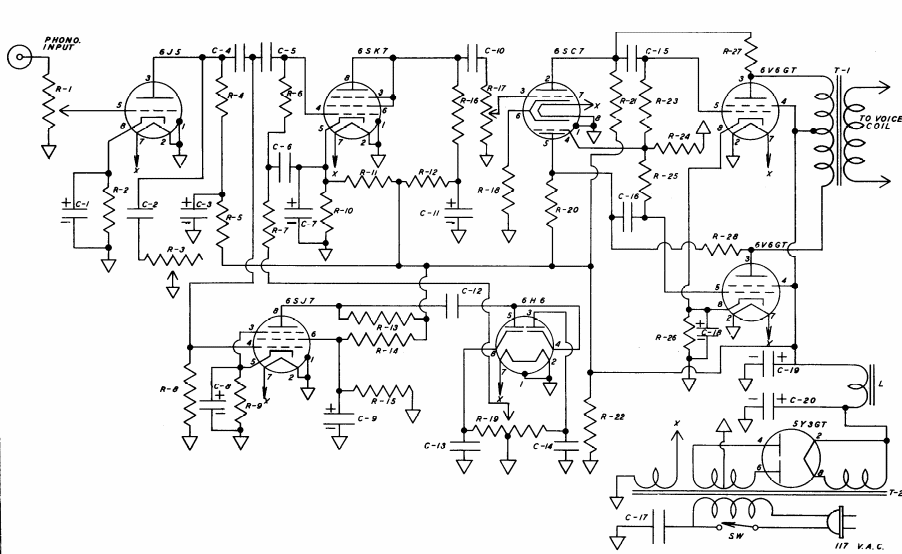

| Clique na imagem para ampliar |




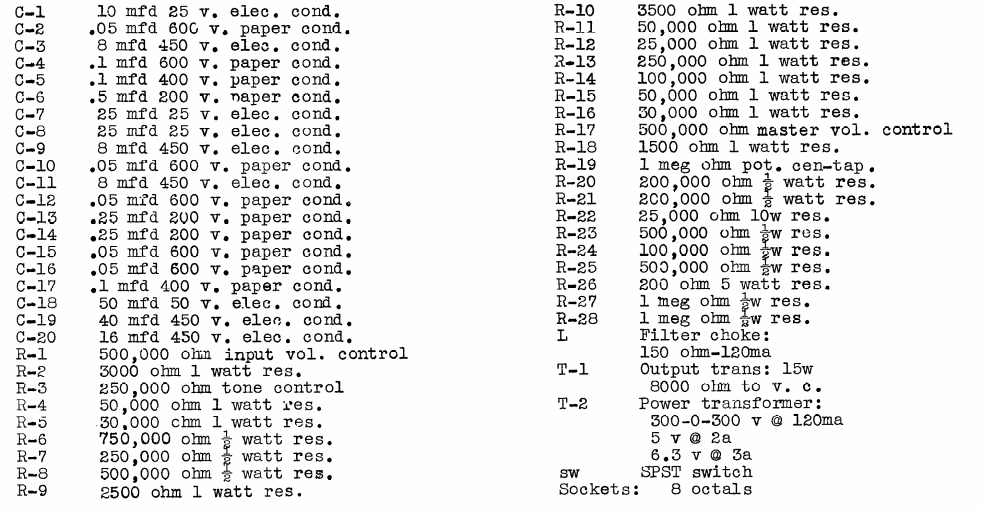

| Clique na imagem para ampliar |
