12W Amplifier (T493E)

Details
Written by: Newton C. Braga

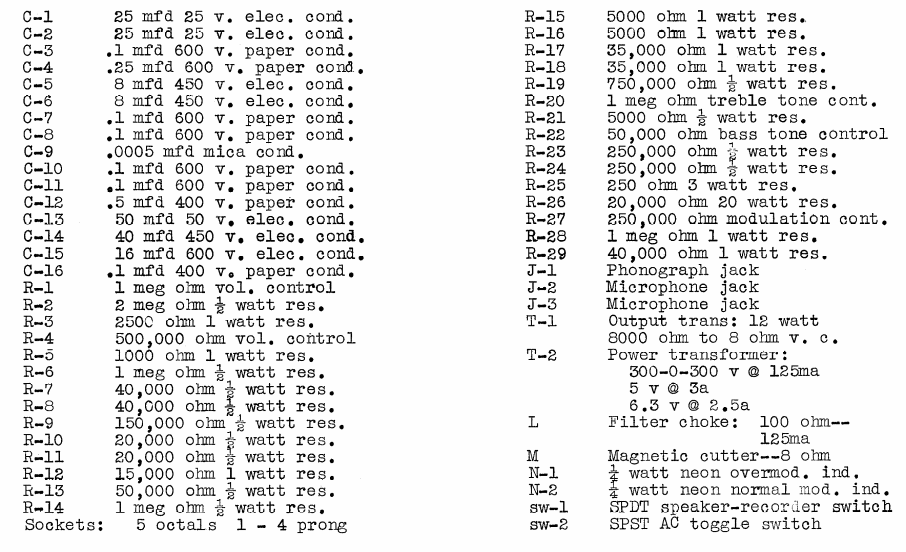

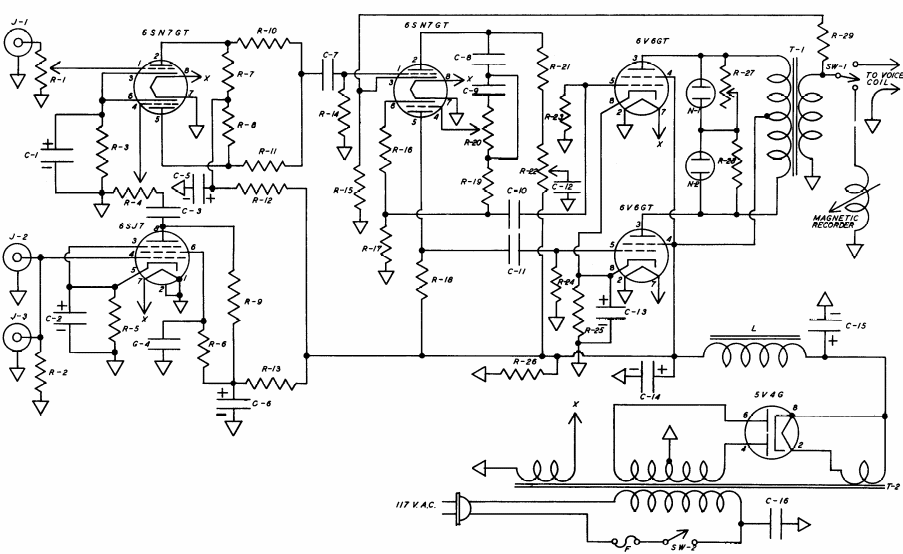

This amplifier for playback of recordings was found in a 1947 manual. It uses a push-pull output with a tube power supply.
