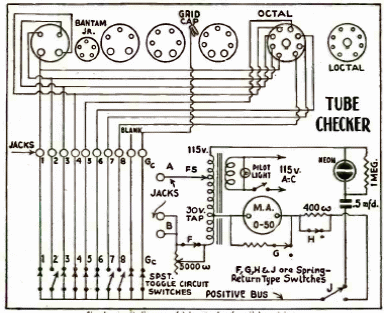

In the figure we have a diagram of a tube tester. The sockets serve as a basis for programming switches so that filaments are fed, and the instrument turned on to measure conductance or emission depending on the type of tube. The circuit is from the 1940s.
