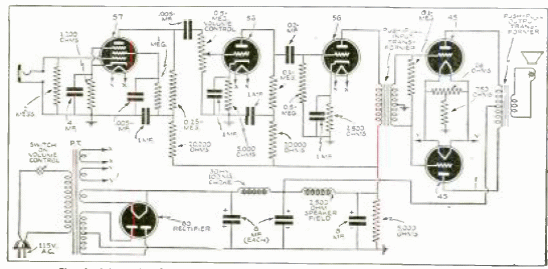

Advertised as an “electric guitar” in a 1939 Radio Craft, this 6-tube amp is the first one we find in a technical publication. The circuit includes the power supply and the power, of the order of a few tens of watts was not specified in the original publication. The push-pull configuration used triodes than the most common power tubes at the time.
