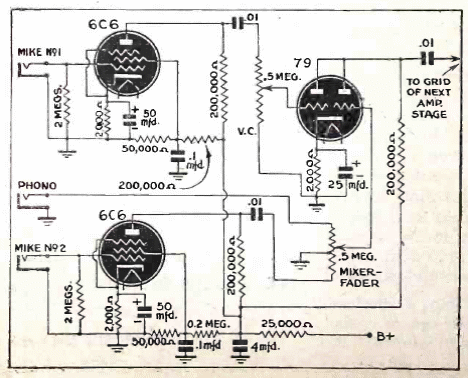

The 3-tube circuit shown was found in a 1944 publication. The circuit does not include the power supply and has two inputs. Can be expanded to more inputs.
3-tube Mixer (T740E)
- Details
- Written by: Newton C. Braga
The 3-tube circuit shown was found in a 1944 publication. The circuit does not include the power supply and has two inputs. Can be expanded to more inputs.
