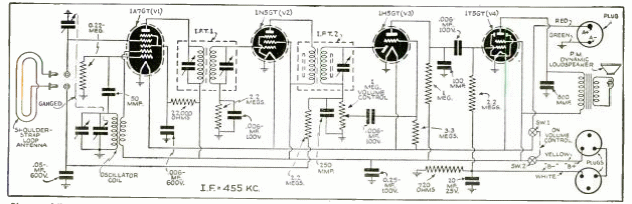

The receiver shown was found in documentation from 1939. It is a battery-powered 4-tube receiver using a loop antenna. The receiver was compactly mounted and could be worn over a shoulder bag. The receive range is for average waves at 455 kHz IF.
1939 Portable Receiver (T687E)
- Details
- Written by: Newton C. Braga
