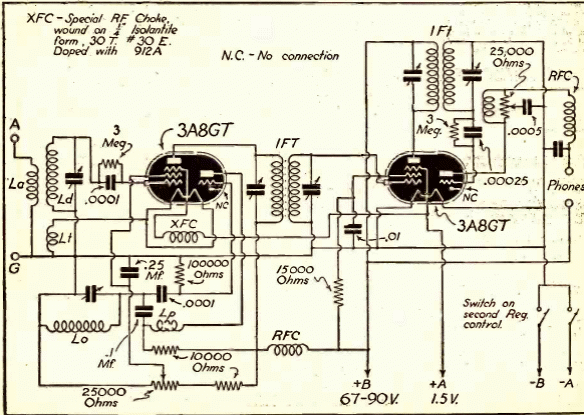

This 2 dual-tube receiver actually works like a 4-tube receiver. Found in documentation from 1942. Battery powered. Note the voltage of +B and the filament voltage of 1.5V. The tuned range depends on the coils.
2 tube Receiver (T794E)
- Details
- Written by: Newton C. Braga
