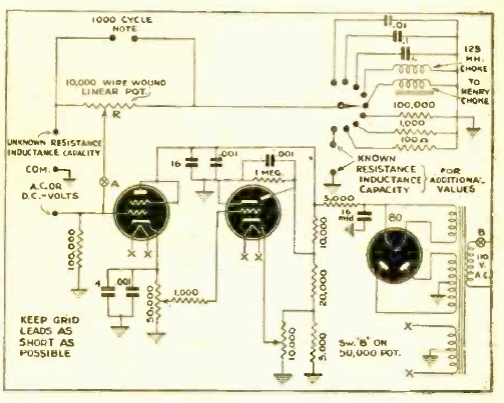

This circuit for measuring bridge resistances, capacitances and inductances was found in a 1944 documentation. The circuit needs an external signal source and includes the power supply with transformer and full-wave rectifier tube.
Electronic Multitest (T870E)
- Details
- Written by: Newton C. Braga
