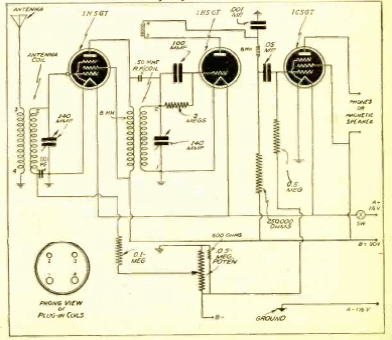

The frequency range of this receiver depends on the coils. We found it on a Radio Craft from 1941. The circuit does not include the power supply and the output is for high impedance headphones. The circuit can operate in the medium and shortwave range.
