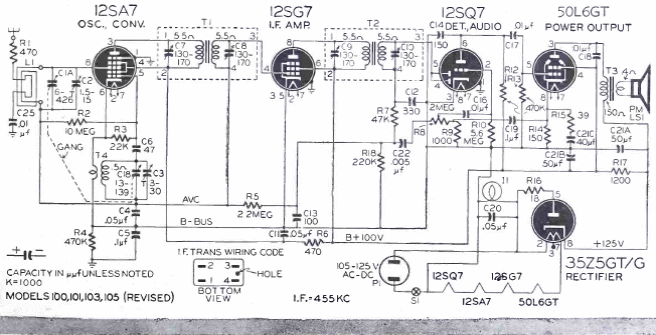

Here's a radio setup that has been popular for decades. The hot-tail circuit used well-known tubes with the filaments connected in series. The antenna was a frame and the output was a loudspeaker. The tuned band was medium wave.
| Clique na imagem para ampliar |
