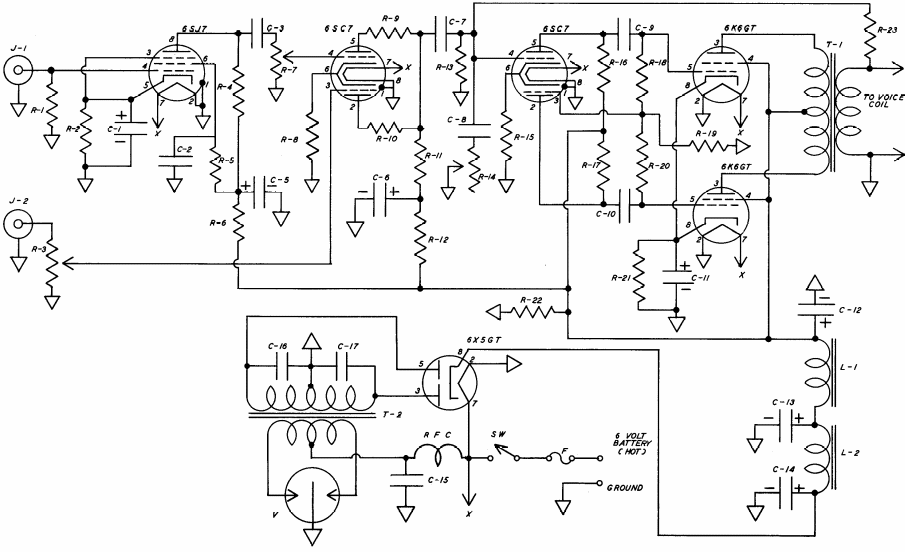

This circuit is intended for battery operation. We found it in an American publication from 1947. The circuit uses a mechanical vibrator to generate high voltage from the battery.
| Clique na imagem para ampliar |
| Clique na imagem para ampliar |
10W to 6V amplifier (T491E)
