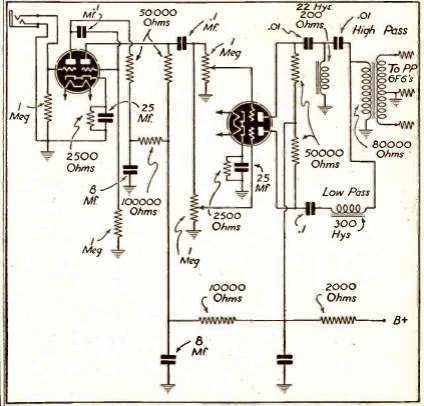

This circuit was found in documentation from 1942. At that time disc recordings could be done at home and there was still no RIAA standard for equalization. The circuit modified the response curve of the signal source for recording.
Recorder Equalizer (T793E)
- Details
- Written by: Newton C. Braga
