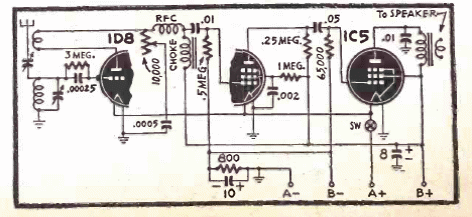

This two-tube receiver was found in a Radio Craft from January 1946. The circuit is for the medium wave band, but depending on the coils it can operate in other bands. The output is on loudspeaker and the power supply with voltages has not been indicated.
