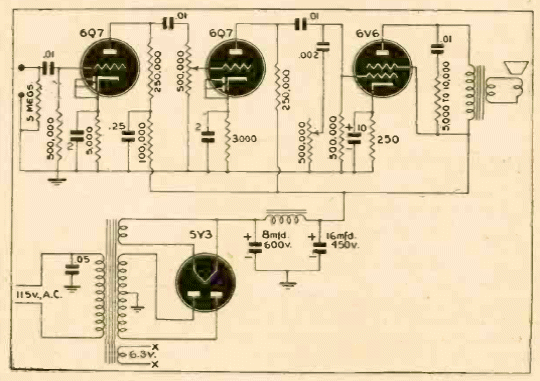

In the figure we have a tube amplifier of 10 W obtained in a publication of 1943. The circuit uses the tube 6V6 with single output and the source is a 5Y3 as rectifier from a transformer. Transformer voltage is not indicated.
10W Amplifier (T698E)
- Details
- Written by: Newton C. Braga
