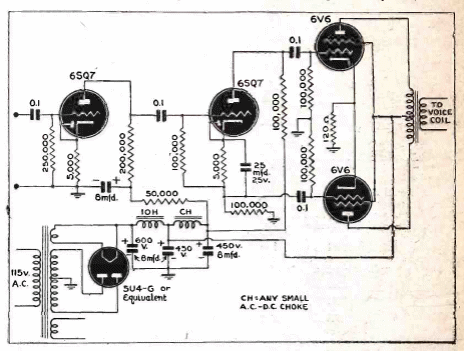

This amplifier was found in a 1943 publication. It uses 6V6 tubes in the output stage with a 6SQ7 used as a phase inverter for its excitation. The source uses a transformer and a full wave rectifier.
6SQ7 and 6V6 Amplifier (T721E)
- Details
- Written by: Newton C. Braga
