Amplifier using the 2A5 (T749E)

Details
Written by: Newton C. Braga

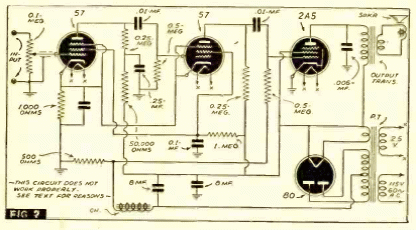

This small 4-tube amplifier, one of which is a full-wave rectifier, was found in a 1941 publication. The circuit has a speaker output and can be used as a sound box for ambient sound. The power is a few watts.
