Amplified Crystal Radio (T868E)

Details
Written by: Newton C. Braga

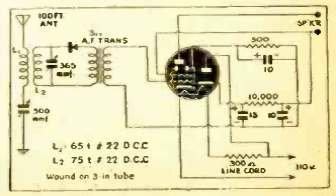

The circuit is from a 1944 publication. It consists of a small two-tube amplifier powered by the mains for a crystal radio. The coils are for the medium wave range.
