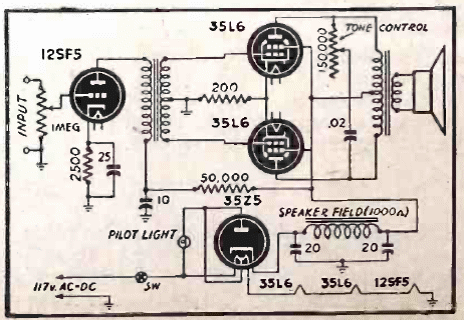

Here's a good high-fidelity amplifier with only 4 tubes and mains power with a transformerless power supply. The tube heaters are connected in series and the output in push-pull.
Small Amplifier (T963E)
- Details
- Written by: Newton C. Braga
Here's a good high-fidelity amplifier with only 4 tubes and mains power with a transformerless power supply. The tube heaters are connected in series and the output in push-pull.
