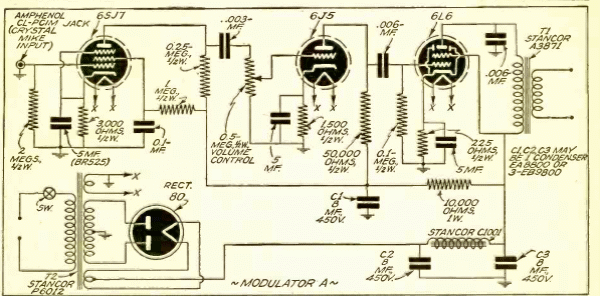

This modulator circuit for transmitters using the 6L6 tube was found in a 1941 publication. The power supply is included, and the transformer must have specifications according to the power of the amplifier, in the order of a few tens of watts.
Modulator for transmitter (T774E)
