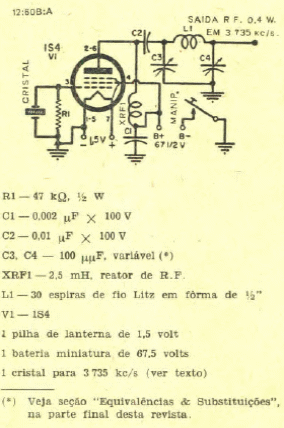

Found in Popular Electronics from June 1956, this one-tube circuit has the frequency determined by the coil and the crystal. A crystal from 1 MHz to 5 MHz can be used, depending on the chosen band. The circuit uses two supply voltages.
400 mW transmitter (T509E)
- Details
- Written by: Newton C. Braga
