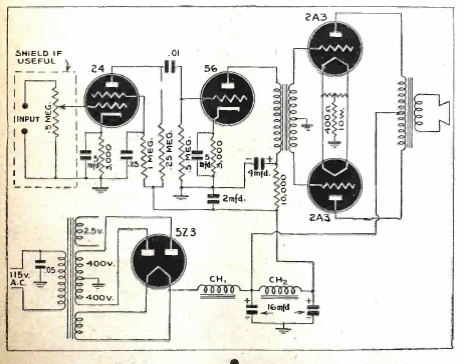

The circuit shown is a typical configuration from the 1940's. Note that triode tubes were still used in the power stage. Only later, with the arrival of pentode valves, did these steps begin to use this type of tube.
Amplifier from the 1940s (T720E)
