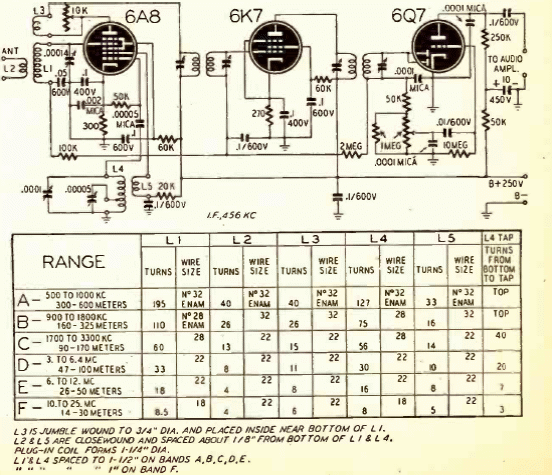

This multiband circuit was found in a Radio Craft from 1946. The circuit provides a signal to an amplifier that must be fed with the indicated voltage of +B outside the filaments.
Super Heterodyne Tuner (T1060E)
- Details
- Written by: Newton C. Braga
This multiband circuit was found in a Radio Craft from 1946. The circuit provides a signal to an amplifier that must be fed with the indicated voltage of +B outside the filaments.
