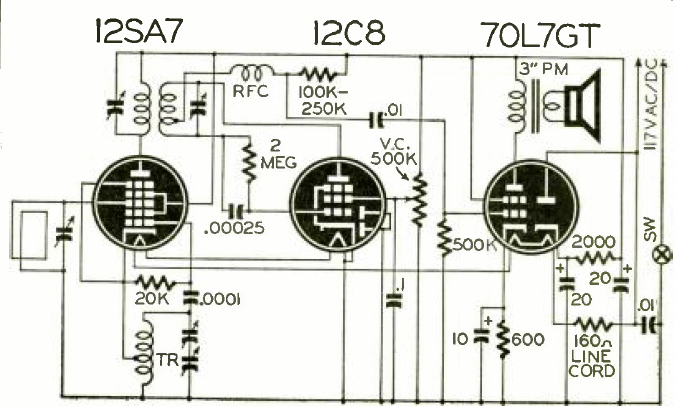

This interesting circuit from an April 1946 Radio Craft combines the two configurations into a 3-tube receiver. The circuit is powered by the mains and has a loudspeaker output. The valves have the filaments connected in series, highlighting the 70V filament 70L7GT.
