Dual Channel 6W Amplifier (T490E)

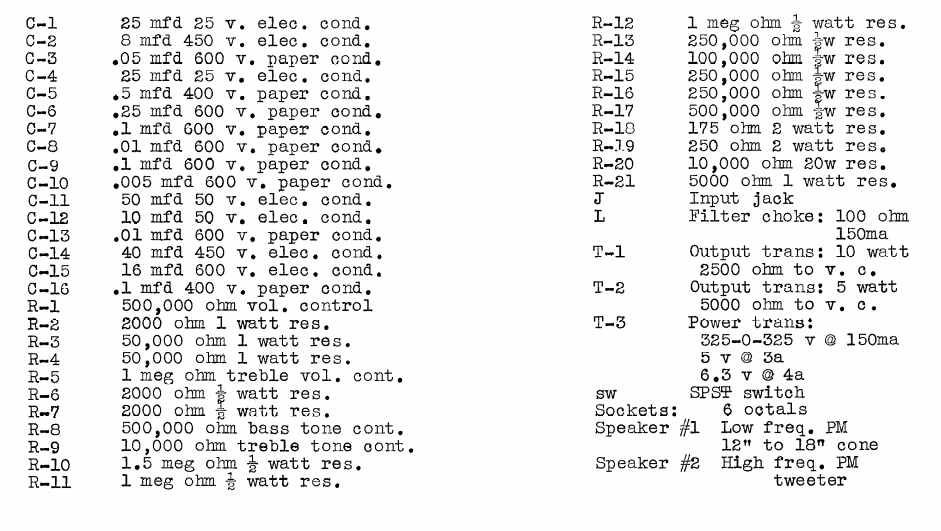

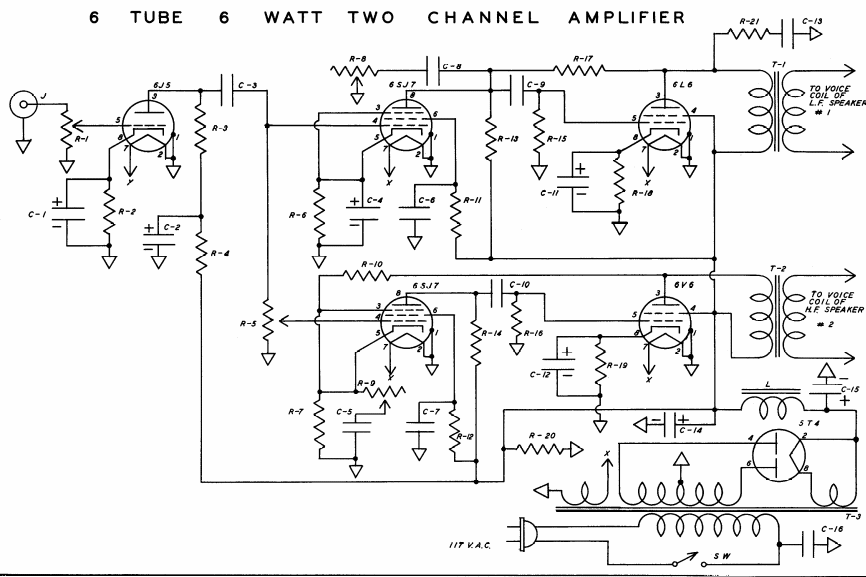

This 6-tube two-channel amplifier was found in an American documentation from 1947. The circuit is two-channel with a separation of bass and treble.
